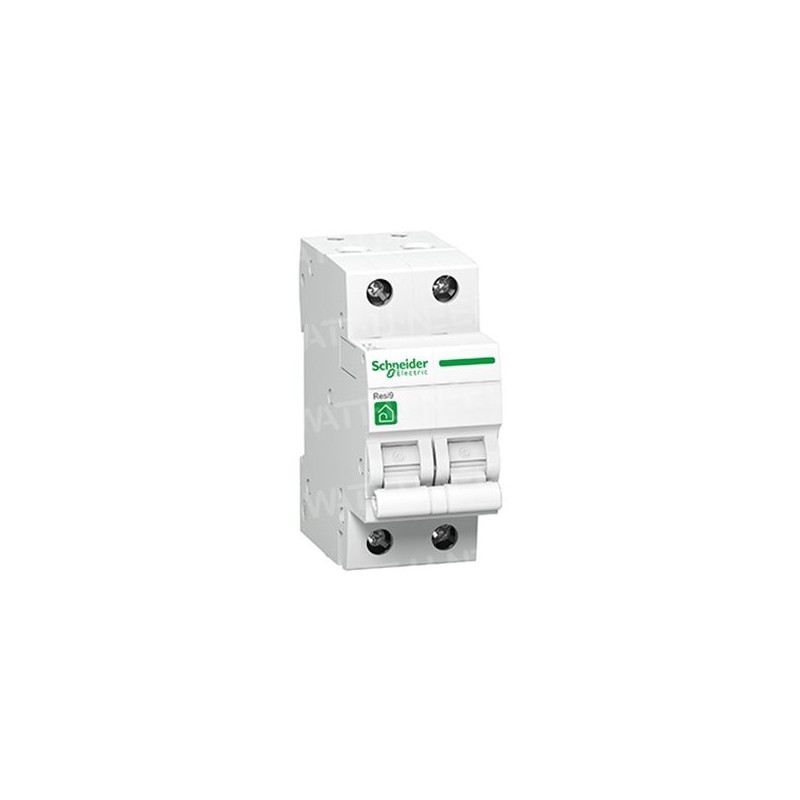

Circuit breaker Schneider 40A
RESI9
2 pole
400V
Free delivery
No minimum purchase
Secure payments
Up to 4 times free of charge
Customer service
7 days a week 9am-10pm
| Range | Resi9 |
| Product name | Resi9 MCB |
| Type of product or component | Miniature circuit breaker |
| Device application | Distribution |
| Description of poles | 2P |
| Number of protected poles | 2 |
| [In] rated operating current | 40 A at 30 °C |
| Mains type | C.a. |
| Trip technology | Thermal-magnetic |
| Tripping curve | C |
| Breaking capacity | 3000 A Icn at 230 V c.a. 50/60 Hz compliant with EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Product certifications | CEBEC |
| Additional | |
| Mains frequency | 50/60 Hz |
| [Ue] rated operating voltage | 230 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| Limiting class | 3 in accordance with EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Control type | Rocker switch |
| Local signalling | Indication ON/OFF |
| Installation mode | Clip-on |
| Mounting bracket | DIN rail |
| Compatibility of distribution block and comb | Bottom: bi-connect |
| 9 mm pitch | 4 |
| Height | 85 mm high |
| Width | 36 mm |
| Depth | width 75 mm |
| Product weight | 0.217 kg |
| Colour | White |
| Mechanical life | 20000 cycles |
| Electrical life | 10000 cycles c.a. 50/60 Hz compliant with EN/IEC 60898-1 |
| Description of optional locks | Padlock in OFF position |
| Connection mode | Tunnel terminals (low) - Tunnel terminals (low) - Tunnel terminals (high) - Tunnel terminals (high) - Tunnel terminals (low) - Tunnel terminals (high) - Tunnel terminals (low) - Tunnel terminals (high) - Tunnel terminals (high) |
| Tightening torque | 2 N.m |
| Environment | |
| Degree of protection IP | IP20 in accordance with IEC 60529 IP40 (modular enclosure) in accordance with IEC 60529 |
| Pollution level | 2 in accordance with EN/IEC 60898-1 |
| Overvoltage category | III |
| Operating temperature | -20°C to 60°C |
| Ambient temperature for storage | -40 to 80°C |
